HYDRO POINT WATER WELL DRILLINGCONTRACTING LLC
DRILLING TOOLS & CONSUMABLES
Built for the ground.
Matched to the rig.
Explore casing tubes, wireline rods, drill pipes and cutting bits for borehole, mineral exploration and deep-well work across the UAE.
COMPLETE TOOLS RANGE
Choose each tool,
one by one.
Browse 11 product families with their source dimensions and available configurations. Contact our team to confirm the correct size and connection before ordering.
11drilling tool product families
1 / 11

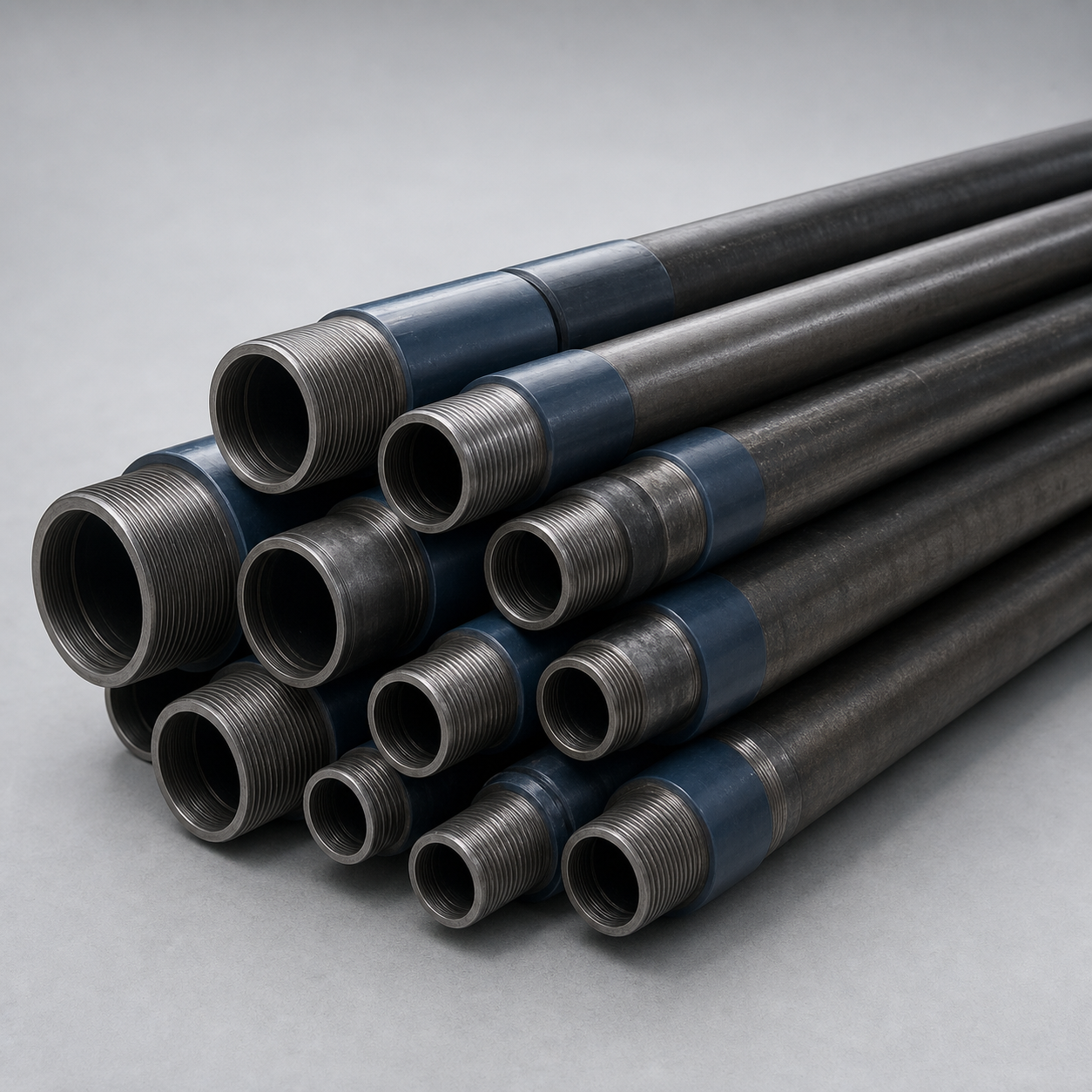

GEOTECHNICAL CASING
AW/BW/NW/HW/HWT/PW Casing Tubes
Precision-machined W-series casing tubes for wireline drilling, mineral exploration and geotechnical work. Heat treatment and phosphated threads support strength and service life.
STANDARDDCDMA
MATERIALR780
POPULAR SIZESAW–PW
CUSTOMIZATIONLength / threads
COMPLETE PRODUCT DATA
AW/BW/NW/HW/HWT/PW Casing Tubes
| Standard | Size | OD × wall thickness | Material | Remark |
|---|---|---|---|---|
| DCDMA | AW | Ø57.4 × 4.4 mm | R780 | Custom length / thread |
| DCDMA | BW | Ø73.2 × 6.35 mm | R780 | Custom length / thread |
| DCDMA | NW | Ø89.1 × 6.35 mm | R780 | Custom length / thread |
| DCDMA | HW | Ø114.3 × 6.35 mm | R780 | Custom length / thread |
| DCDMA | PW | Ø139.7 × 7.10 mm | R780 | Custom length / thread |
Catalogue information is indicative and may vary by configuration. Hydro Point will confirm the final tool size, material and connection for your rig and geological conditions.
